Bone Morphometry and Densitometry
[edit]Suggested readings
[edit]- Guidelines for Assessment of Bone Microstructure in Rodents Using Micro-Computed Tomography
- Calibration of Micro-CT Data for Quantifying Bone Mineral and Biomaterial Density and Microarchitecture
- A New Method for the Model-independent Assessment of Thickness in Three-dimensional Images
- Quantification of Bone Microarchitecture with the Structure Model Index
- Quantification of Connectivity in Cancellous Bone, with Special Emphasis on 3D Reconstructions
- Resolution Dependence of the Non-metric Trabecular Structure Indices
- Accuracy of Cancellous Bone Volume Fraction Measured by Micro-CT Scanning
Return to Contents or Return to Main Page
Model-Independent (Direct) Structural Measurements
[edit]Bone structural parameters are measured on segmented (i.e., binary) data. Typically the bone is extracted from the background using a global threshold approach; other filtering steps are also commonly employed (e.g., Gaussian smoothing to suppress noise).
Voxel Counting Method

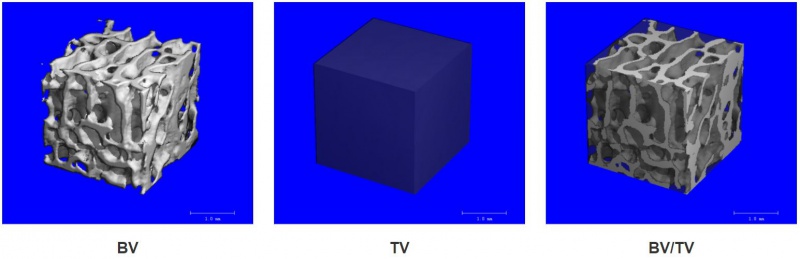

[edit]- Bone Volume (BV): The volume of bone, usually applied to the trabecular compartment. Measured using the voxel counting (VOX) method. Output units are mm3.
- Total Volume (TV): The volume of bone, pores, and marrow cavities, usually applied to the trabecular compartment. Measured using the voxel counting (VOX) method. Output units are mm3.
- Bone Volume Fraction (BV/TV): The ratio of bone to the total volume, usually applied to the trabecular compartment. Calculated by dividing BV by TV, as measured using the voxel counting (VOX) method. This is a dimensionless (non-metric) parameter but is often expressed as a percentage.
Return to Contents or Return to Main Page
Maximal Spheres Method
[edit]Refer to this article for more details.

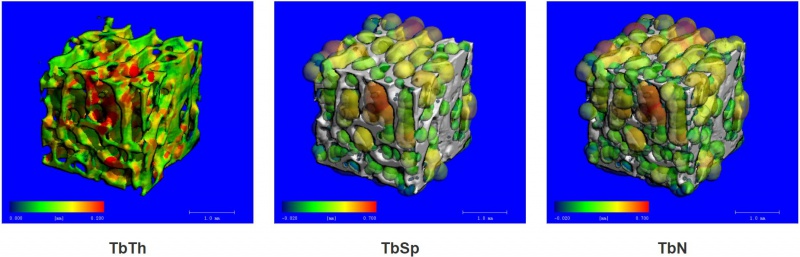

- Trabecular Thickness (TbTh): The mean thickness of the trabecular struts. Measured using the distance transform (DT) method of fitting maximal spheres inside the bone structure. The standard deviation of the TbTh distribution (TbThSD) provides an estimation of variation in this parameter. Output units are mm.
- Trabecular Separation (TbSp): The mean thickness of the marrow cavities (i.e., the edge of one trabeculae to the next). Measured using the distance transform (DT) method of fitting maximal spheres inside the marrow spaces. The standard deviation of the TbSp distribution (TbSpSD) provides an estimation of variation in this parameter. Output units are mm.
- Trabecular Number (TbN): The average number of trabeculae per unit length. Calculated as the inverse of the mean distance between the midaxes of the bone structure. The mean distances between the midaxes is determined using the distance transform (DT) method of fitting maximal spheres. The standard deviation of the TbN distribution provides an estimation of variation in this parameter. Output units are 1/mm.
- Cortical Thickness (CtTh): The mean thickness of the cortex. Measured using the distance transform (DT) method of fitting maximal spheres inside the bone structure. Pores in the cortex lead to significant underestimation of CtTh and should be "filled in" prior to measurement (i.e., the apparent CtTh). Output units are mm.
Return to Contents or Return to Main Page

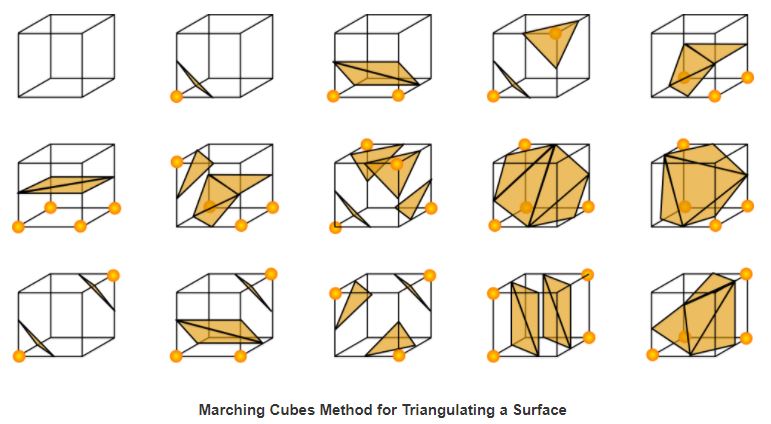

Marching Cubes Method
[edit]Refer to this article for more details.
- Bone Surface (BS): A measure of the bone surface area. Measured using the Marching Cubes method to triangulate (TRI) the surface. Output units are mm2.
- Structure Model Index (SMI): An estimation of the plate-rod characteristic of the bone structure. SMI is calculated from the curvature of a triangulated surface (TRI) of the structure from the equation: SMI=6{[BV(dBS/dr)]/BS2]. For an ideal plate structure SMI=0 and for an ideal rod structure SMI=3. This is a dimensionless (non-metric) parameter.
- Refer to this article for more details.
Image Source: Wikipedia, http://en.wikipedia.org/wiki/File:MarchingCubes.svg, Aug 2011
Return to Contents or Return to Main Page
Other Method

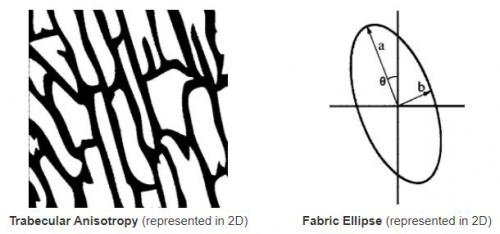

[edit]- Degree of Anisotropy (DA): A measure of how structure varies with orientation (i.e., if there is a preferred orientation). An isotropic structure, where properties are similar in all directions, would have DA=1 whereas an anisotropic structure has DA>1. Degree of anisotropy is defined as the ratio between the maximal and minimal radius of the mean intercept length (MIL) ellipsoid. The MIL is calculated by placing a series of parallel lines over the 3D image and taking the total length of the test lines divided by the number of bone-marrow interface. The MIL is calculated for a range of 3D directions and the MIL ellipsoid is calculated using a least square fit. This is a dimensionless (non-metric) parameter.
- Refer to this article for more details.
Image Source: C. Turner (1992), J. Biomech., 25, pp. 1-9.
- Connectivity Density (ConnD): A measure of the number of trabecular connections per unit volume. Measured using the Euler characteristic with controlled topological notes. Output units are 1/mm3.
- Refer to this article for more details.

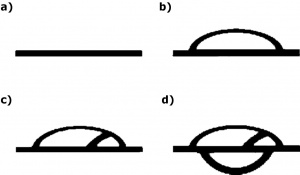

This figure illustrates the concept of redundent trabeculae: a) a single trabeculae, b) two trabeculae, c) three trabeculae, and d) four trabeculae. Trabeculae are counted by "cutting trabeculae" until the structure is broken into two disconnected parts.
Image Source: A. Odgaard and H.J.G. Gundersen (1993), Bone, 14, pp. 173-182.
Return to Contents or Return to Main Page
Densitometric Measurements
[edit]Densitometry parameters are measured on grayscale data.
Descriptive Statistics (Mean, Median, SD) of Calibrated Voxel Values

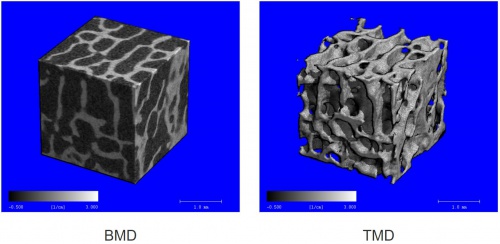

[edit]Bone mineral density (BMD) is defined as the volumetric density of calcium hydroxyapatite (CaHA) in a biological tissue in terms of g.cm-3. It is calibrated by means of phantoms with known density of CaHA. Bone mineral density can refer to two different measurements:
- Bone Mineral Density (BMD): A measure of the density of minerals within the whole bone. Measured by taking the average grayscale intensity of bone, marrow, and pore voxels, and converting it to hydroxyapatite (HA) mineral density. The combined density of a well-defined volume which contains a mixture of both bone and soft tissue, such as a selected volume of medullary trabecular bone in a femur or tibia, is measured as “bone mineral density”, or BMD. This parameter BMD relates to the amount of bone within a mixed bone-soft tissue region, but does not give information about the material density of the bone itself.
- Tissue Mineral Density (TMD): A measure of the density of minerals within the bone tissue. Measured by taking the average grayscale intensity of the bone only (usually suppressing 2 voxels at the edges to elimitate partial volume artifacts) and converting it to hydroxyapatite (HA) mineral density. The density measurement restricted to within the volume of calcified bone tissue, such as cortical bone, excluding surrounding soft tissue, is called “tissue mineral density” or TMD. By contrast to BMD, this gives us information about the material density of the bone itself, and ignores surrounding soft tissue.
- Refer to this article for more details.
Typically trabecular bone is assessed for BMD, averaging bone and marrow within the medullary volume of interest. By contrast, for cortical bone, TMD is measured. Note that in the case of trabecular bone, partial volume effect compromises the measurement of TMD except at very high micro-CT resolutions. As a general rule, resolution should be such that the thickness of a bone structure should equal 10 pixels or more, in order for TMD to be measured.
